Using Fuel Tanks

A Fuel Tank

is an on-chain pool of Enjin Coin (ENJ) that pays Transaction Fees — and, optionally, Storage Deposits — on behalf of other accounts. With a fuel tank, your players can transact without ever holding ENJ or worrying about gas.

Dispatching a transaction through a tank takes a single optional argument: add fuelTank to any CreateTransaction (or CreateBatchTransaction) and the platform routes that transaction through the tank.

A tank decides which transactions it pays for using a set of rules. When a transaction is dispatched through a tank, all of the following must hold:

  • The tank is not frozen.
  • The tank holds enough ENJ.
  • The dispatching account is allowed to use the tank.
  • The tank's rules allow this particular transaction.
What you'll need
  • An Enjin Platform Account with an API token, used to authenticate the requests below.
  • Some ENJ on Enjin / Canary Matrixchain to fund the tank. You can get cENJ (Canary ENJ) for testing from the built-in Canary faucet in the Platform UI.
Prefer a UI?

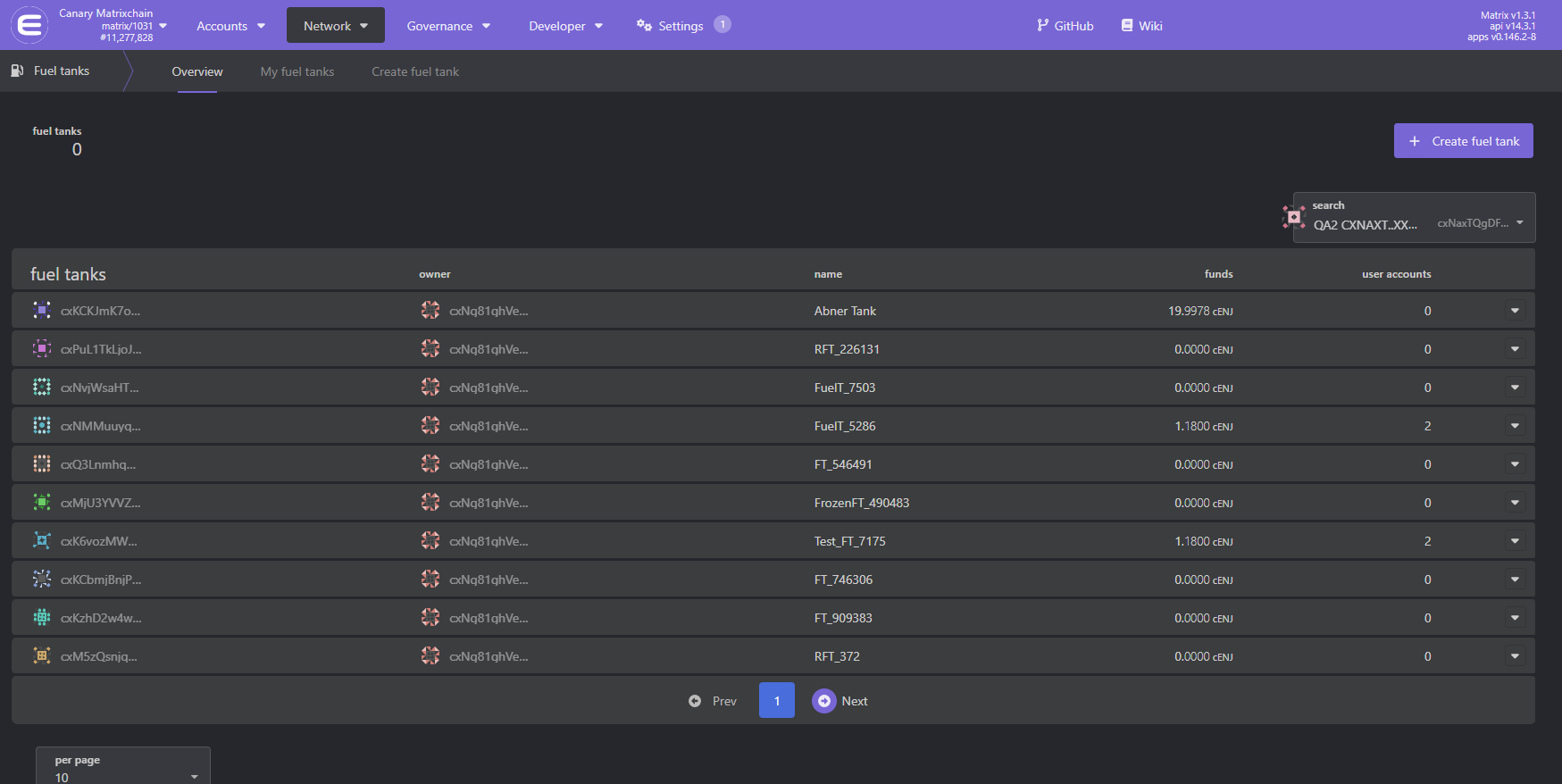

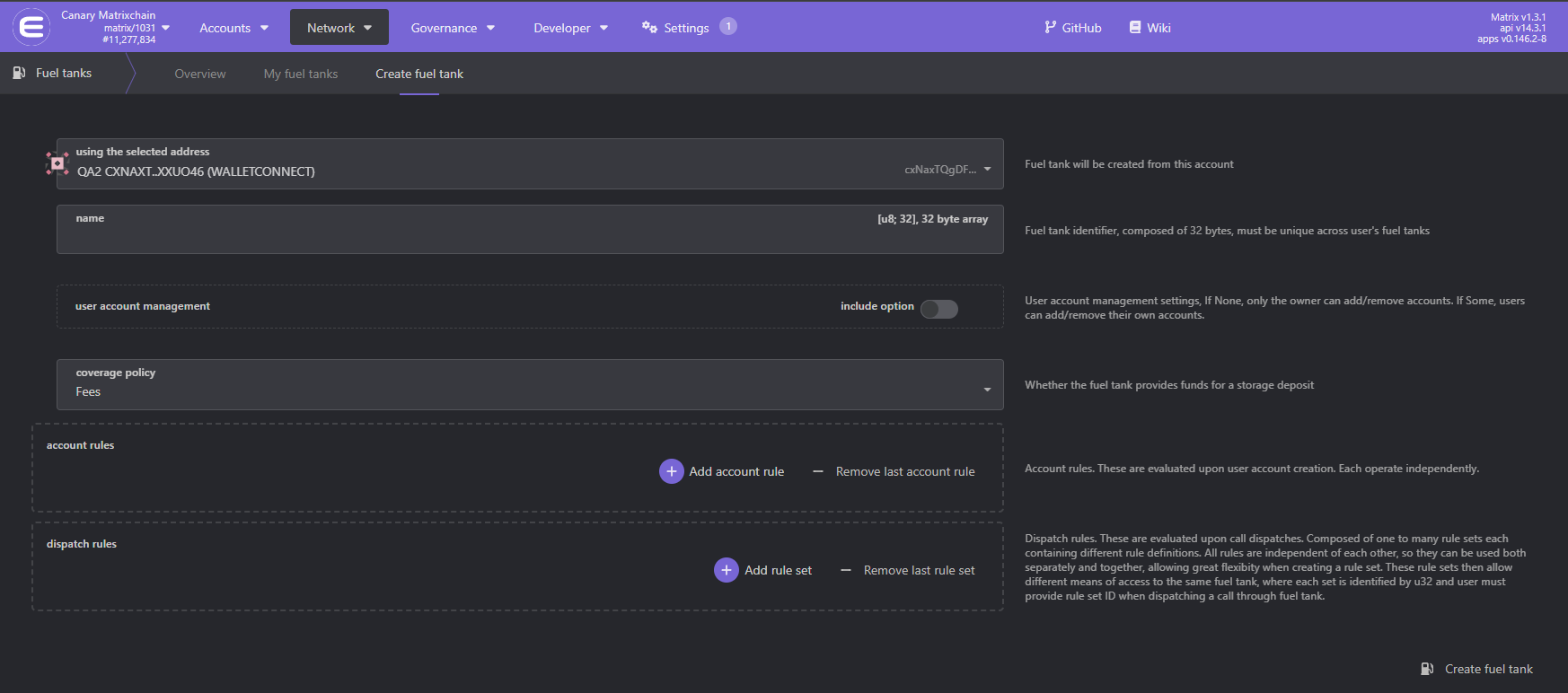

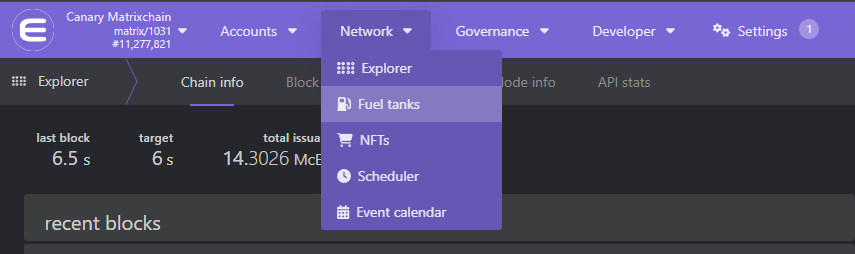

Fuel tanks can also be created and configured visually in the Enjin Platform UI. This page uses the Platform API so the setup is scriptable and reproducible.

The most common use of a fuel tank is paying fees for players who never touch ENJ themselves.

A tank decides which transactions it pays for through a set of rules, which you can tailor to many different use cases — for example, a tank that only subsidizes transactions involving tokens from a specific collection, or one that covers fees only for a fixed list of whitelisted accounts. (How fuel tanks work covers the full list.)

The setup below uses the most common rule, Require Signature, to build a tank that only your own application can dispatch through. That keeps the tank from being drained or used to subsidize unrelated apps, while your players transact without ever holding ENJ.

Most games onboard players with managed wallets: the game creates and operates a wallet for each player. To cover those players' fees, you configure the tank with:

  • User account management enabled, with the tank reserving the account-creation deposit, so players are added to the tank automatically and never pre-fund anything.
  • Coverage policy set to Fees and Deposit, so the tank pays both transaction fees and any storage deposit a call needs (for example, listing a token).
  • One rule set with Require account enabled and a single Require signature rule set to your daemon wallet address.

Then you fund the tank with ENJ. The rest of this section walks through it.

1. Create the tank​

Fuel tanks are created on-chain, so you create one by dispatching the createFuelTank action through CreateTransaction. The call below builds the tank described above: user account management on (with the tank reserving the account-creation deposit), coverage policy Fees and Deposit, and one rule set with Require account enabled and a single Require Signature rule pointing at your Wallet Daemon address.

mutation CreateManagedWalletFuelTank($network: Network!, $chain: Chain!, $name: String!, $daemonAddress: String!) {
  CreateTransaction(
    network: $network
    chain: $chain
    transaction: {
      createFuelTank: {
        name: $name
        coveragePolicy: FEES_AND_DEPOSIT
        userAccountManagement: { tankReservesAccountCreationDeposit: true }
        ruleSets: [
          {
            id: 0
            requireAccount: true
            rules: [{ requireSignature: $daemonAddress }]
          }
        ]
      }
    }
  ) {
    uuid
    action
    state
  }
}

Variables:

{
  "network": "CANARY",
  "chain": "MATRIX",
  "name": "My Game Fuel Tank",
  "daemonAddress": "INSERT_WALLET_DAEMON_ADDRESS"
}

Sign the returned transaction — the Wallet Daemon does this for you. Once it reaches FINALIZED, the tank exists on-chain with its own address, which you'll need in order to fund it and dispatch through it.

Finding your daemon wallet address

The Require Signature rule must point at the address your Platform Wallet Daemon signs with — that's what lets the platform authorize dispatches through this tank automatically. The quickest way to find it is the Daemon address field on your Platform settings page, where you can copy it directly.

2. Fund the tank​

A tank can only pay fees while it holds ENJ. Send ENJ to the tank's address (returned by the create call, and shown on the Fuel Tanks page in the Platform UI). On Canary, top it up with cENJ from the faucet.

3. Dispatch transactions through the tank​

Now any action you perform on a player's behalf can be paid for by the tank. Sign the transaction as the player's managed wallet with signerExternalId, and add fuelTank set to your tank's address:

mutation DispatchThroughTank($network: Network!, $chain: Chain!, $signerExternalId: String, $fuelTank: String) {
  CreateTransaction(
    network: $network
    chain: $chain
    signerExternalId: $signerExternalId
    fuelTank: $fuelTank
    transaction: {
      transferToken: {
        recipient: "cxLf6yvvtscKrHRfKDphnzsT3eoRY45VbJvqXKub5pmj5mdbQ" #The recipient of the transfer
        collectionId: 36105 #Specify the collection ID
        tokenId: 1 #Token ID to transfer
        amount: 1 #Amount to transfer
      }
    }
  ) {
    uuid
    action
    state
  }
}

Variables:

{
  "network": "CANARY",
  "chain": "MATRIX",
  "signerExternalId": "docs-example-player",
  "fuelTank": "INSERT_FUEL_TANK_ADDRESS"
}

The player's managed wallet signs the action, and the tank covers the fee and any storage deposit. Because the tank's Require Signature rule points at your daemon wallet, the platform attaches the required signature for you — there is nothing extra to sign.

Once the transaction reaches FINALIZED, the chain emits the usual events for the action (here, MultiTokens.Transferred). See Working with Events.

Dispatching through a fuel tank​

fuelTank is available on both CreateTransaction and CreateBatchTransaction. Set it to a tank's address and the platform dispatches the transaction through that tank instead of paying the fee from the signing account. The transaction runs exactly as it normally would — the only difference is who pays for it.

A dispatch succeeds only if the signing account is allowed by the tank's rules and the tank can cover the cost; otherwise the transaction fails. If you need help choosing the right tank for a given call, see Selecting a fuel tank to dispatch with.

How fuel tanks work​

A tank decides what to pay for, and for whom, through two kinds of rules: dispatch rules, evaluated on every call, and account rules, evaluated when an account is added to the tank. Both are set when you create the tank (see Create the tank).

Dispatch rules and rule sets​

A tank can have one or more rule sets, each a group of individual dispatch rules. A dispatched call must satisfy a rule set to be paid for. Each rule set has its own ID, so you can grant different callers different access by giving them different rule sets.

When you dispatch through the tank, fuelTankRuleSetId chooses which rule set the call is evaluated against. It defaults to 0, so a tank with a single rule set needs nothing extra; set it to another rule set's ID to dispatch against that one instead.

Available dispatch rules:

  • Whitelisted Callers: Subsidize Transactions dispatched from specific Wallet Accounts.
  • Whitelisted Collections: Subsidize Transactions involving a specific Collection.
  • Require Token: Subsidize Transactions only if the caller holds a specific NFT.
  • Whitelisted Pallets: Subsidize Transactions involving a specific Pallet.
  • Permitted Extrinsics: Subsidize Transactions involving specific Extrinsics (for example, marketplace listing calls).
  • Permitted Calls: Subsidize Transactions involving specific Extrinsics and parameters.
  • User Fuel Budget: Cap how much fuel each user account can spend in a period.
  • Tank Fuel Budget: Cap the tank's total fuel spend over a period to extend its lifespan.
  • Max Fuel Burn Per Transaction: Cap fuel spent on any single transaction.
  • Require Signature: Subsidize only Transactions carrying a valid signature from a specific Wallet Account. This is the rule behind the recommended setup above.

Require Account​

A rule set can also require that the dispatching account already has a user account in the tank before it will pay for a call, by enabling Require account on the rule set.

Account rules​

Account rules decide who is allowed to be added to the tank's user accounts. Two are available:

  • Whitelisted Callers: Only listed accounts may be added to the tank's user accounts.
  • Require Token: Only accounts that hold the specified token may be added.

An account is added either ahead of time by the tank owner, or automatically the first time it dispatches — the latter requires user account management to be enabled.

User account management​

By default, only the tank owner can add accounts to the tank's user accounts. Enabling user account management lets accounts be added automatically. You also choose whether the tank covers each new user account's Storage Deposit

:

  • Tank reserves the deposit — accounts are added without pre-funding anything. This is what the recommended setup uses, so players never need ENJ.
  • Tank does not reserve the deposit — accounts can add themselves, but must cover their own user-account storage deposit.

Coverage policy​

The coverage policy controls what the tank pays for:

  • Fees — transaction fees only.
  • Fees and Deposit — transaction fees plus any storage deposit a call requires (for example, listing a token locks a deposit until the listing is filled or cancelled).

Other configurations​

The recommended setup above is one combination of rules. By mixing the dispatch rules you can build tanks for many other use cases. Each is created the same way — dispatch createFuelTank through CreateTransaction, changing only the ruleSets/accountRules. For the complete rule reference, see the Fuel Tank pallet documentation.

Subsidize token transfers for a collection​

Pays fees only for transfer calls involving tokens from a single collection — a good fit for a game that wants to cover its players' item transfers and nothing else. It combines the Permitted Extrinsics and Whitelisted Collections dispatch rules.

mutation CreateCollectionTransferTank($network: Network!, $chain: Chain!, $name: String!, $collectionId: BigInt!) {
  CreateTransaction(
    network: $network
    chain: $chain
    transaction: {
      createFuelTank: {
        name: $name
        coveragePolicy: FEES
        ruleSets: [
          {
            id: 0
            requireAccount: false
            rules: [
              {
                permittedExtrinsics: [BATCH_TRANSFER] # only subsidize transfers
                whitelistedCollections: [$collectionId] # only for this collection
              }
            ]
          }
        ]
      }
    }
  ) {
    uuid
    action
    state
  }
}

Variables:

{
  "network": "CANARY",
  "chain": "MATRIX",
  "name": "Collection Token Transfers",
  "collectionId": 36105
}

Subsidize any transaction involving a collection's tokens​

Broader than the previous example: pays fees for any call involving tokens from a given collection (transfers, listings, burns, and so on), using just the Whitelisted Collections dispatch rule.

mutation CreateCollectionTank($network: Network!, $chain: Chain!, $name: String!, $collectionId: BigInt!) {
  CreateTransaction(
    network: $network
    chain: $chain
    transaction: {
      createFuelTank: {
        name: $name
        coveragePolicy: FEES_AND_DEPOSIT
        ruleSets: [
          {
            id: 0
            requireAccount: false
            rules: [{ whitelistedCollections: [$collectionId] }]
          }
        ]
      }
    }
  ) {
    uuid
    action
    state
  }
}

Variables:

{
  "network": "CANARY",
  "chain": "MATRIX",
  "name": "Whole Collection",
  "collectionId": 36105
}

Subsidize all transactions for whitelisted accounts, with a budget​

Covers all transactions, but only for a fixed list of accounts, and caps how much fuel each account can spend per period. It pairs a Whitelisted Callers account rule (who may join the tank) with Require account and a User Fuel Budget dispatch rule.

mutation CreateWhitelistedBudgetTank($network: Network!, $chain: Chain!, $name: String!, $account: String!, $budgetAmount: BigInt!, $resetPeriod: Int!) {
  CreateTransaction(
    network: $network
    chain: $chain
    transaction: {
      createFuelTank: {
        name: $name
        coveragePolicy: FEES
        accountRules: { whitelistedCallers: [$account] } # only these accounts may join the tank
        ruleSets: [
          {
            id: 0
            requireAccount: true # caller must be a user account in the tank
            rules: [{ userFuelBudget: { amount: $budgetAmount, resetPeriod: $resetPeriod } }]
          }
        ]
      }
    }
  ) {
    uuid
    action
    state
  }
}

Variables:

{
  "network": "CANARY",
  "chain": "MATRIX",
  "name": "Whitelisted Accounts With Budget",
  "account": "cxKy7aqhQTtoJYUjpebxFK2ooKhcvQ2FQj3FePrXhDhd9nLfu",
  "budgetAmount": 5000000000000000000,
  "resetPeriod": 432000
}
